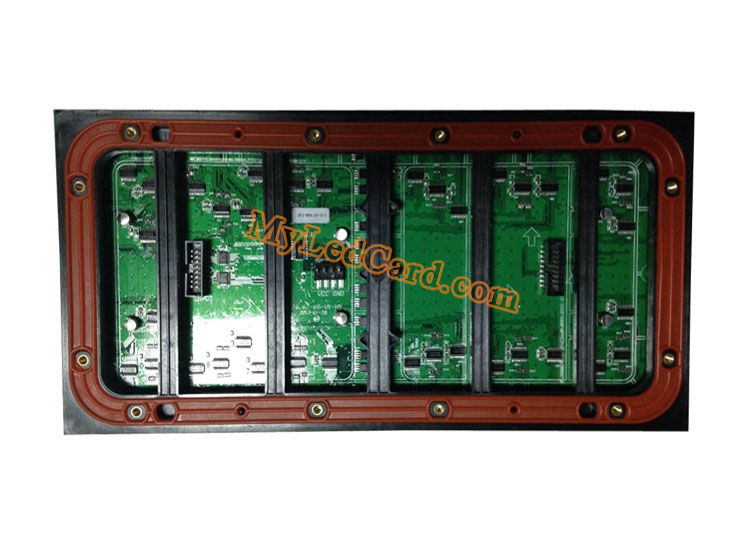

P6.67 SMD Outdoor LED Display Module Board 320mm x 160mm

The compact 6.67mm pixel pitch outdoor SMD LED display module board can generate super high resolution image quality with excellent contrast ratio and large viewing angle at very close distances. They can guarantee a reliable performance 24/7 for advertisers with peace of mind. Those rugged, waterproof SMD LED modules are an high end solution in today's semi-outdoor/outdoor digital LED display applications. The best price includes the 320mm x 160mm SMD LED module, waterproof rubber, 16pin signal and 5V power cables.

Features:

- Big size LED chips and top quality driver IC

- High resolution and large viewing angle

- Supports calibration technology on the LED lamps

- High brightness and excellent color uniformity

- Great heat dissipation on PCB board

- Brightness can be manually adjusted by software or auto-controlled by sensor card

- Waterproof gluing is good to be used for more than 8 years

- Low power consumption, Less maintenance and long life span

- Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc

Specifications:

1. Pixel Pitch: 6.67mm

2. Pixel Density: 122,476 pixels/sq.m

3. Pixel Configuration & LED Type: 1R1G1B, SMD3535

4. LED Module Size(L*H): 320*160mm

5. LED Module Resolution: 48*24 pixels

6. Panel Size(L*H*D): 960*960*155mm or as needed

7. Panel Resolution: 144*144 pixels

8. Brightness: ≥6200 nits/sq.m

9. Brightness Control: 100 grades by software or auto sensor card

10. Driving Method: 1/6 scan

11. Viewing Angle: 145°H /145°V

12. Viewing Distance: >6M

13 Refresh Rate: >400Hz

14. Grey Scale: ≥8,192 levels

15. Display Color: ≥16.7M

16. Power Consumption: max.:890W/sq.m, avg.:356W/sq.m

17. Input Voltage: 110~230V/AC (±10%)

18. Working Voltage: DC 5V

19. Input Power Frequency: 50/60Hz

20. Protection Rating: front-IP65/rear-IP54(with cabinet)

21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

23. Life Span (50% brightness): ≥100,000 hours

24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS
