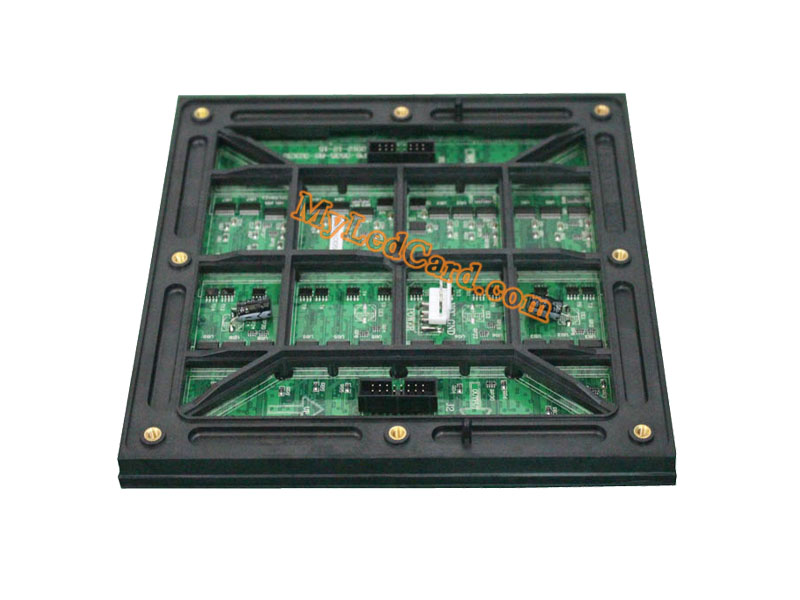

P6 Outdoor High Brgithness SMD LED Display Module China P6 waterproof SMD LED display screen module from China's leading factory can produce 27,777 pixels and 6500 nit brightness per sq.m, and is created to work in all kinds of weather conditions. It is a very superior solution with high end technology for both indoor and outdoor applications requiring extreme image clarity at ultra close viewing distances. The best price includes the 192mm x 192mm SMD LED module, waterproof rubber ring, 16pin signal cable and 5V power cable. Features: - High resolution and large viewing angle - Big size LED chips and top quality driver IC - Supports calibration technology on the LED lamps - High brightness and excellent color uniformity - Great heat dissipation on PCB board - Brightness can be manually adjusted by software or auto-controlled by sensor card - Waterproof gluing is good to be used for more than 8 years - Low power consumption, Less maintenance and long life span - Control systems supported: Linsn, Novastar, Onbon, Xixun, Lumen, etc Specifications:
1. Pixel Pitch: 6mm
2. Pixel Density: 27,777 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, SMD3535
4. LED Module Size(L*H):192*192mm
5. LED Module Resolution: 32*32 pixels
6. Panel Size(L*H*D): 768*768*155mm or as needed
7. Panel Resolution: 128*128 pixels
8. Brightness: ≥6,500 nits/sq.m
9. Brightness Control: 100 grades by software or auto sensor card
10. Driving Method: 1/8 scan
11. Viewing Angle: 160°H /140°V
12. Viewing Distance: >6M
13 Refresh Rate: >1,920Hz
14. Grey Scale: ≥16,384 levels
15. Display Color: ≥16.7M
16. Power Consumption: max.:890W/sq.m, avg.:356W/sq.m
17. Input Voltage: 110~230V/AC (±10%)
18. Working Voltage: DC 5V
19. Input Power Frequency: 50/60Hz
20. Protection Rating: front-IP65/rear-IP54(with cabinet)
21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
23. Life Span (50% brightness): ≥100,000 hours
24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS
1. We ship most of the items listed on our website worldwide using the fast shipping way with a tracking number via DHL, FedEx, or UPS Express, which is around 4~8+ days to arrive.
2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping lablel. Simply just providing us a shipping account will not be accepted. If you use a FedEx account, please also ask them for a control number or reference number.
3. We will process your order within 1~3 working days after receipt of payment. We will inform you of the delivery time when it happens to be Out of Stock for the products on your order.
4. We only ship to the confirmed address for your order so please do confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match. It is OK if you pay by Wire Transfer or Western Union.
5. Service transit time is provided by the shipping company and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. The buyer shall pay the customs charges on his side if they occur. Please inform us if you want to lower the product value on the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount as paid. And for all EU countries, Switzerland, Norway and Ireland, a VAT number must be provided for customs clearance.
7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.
8. Please check the items in front of the DHL/FedEx courier when they arrive. If the goods are damaged, please try to obtain local DHL’s documentary evidence for the breakage, and in the meantime, email us with photos of the packaging and products as soon as possible.
9. The products purchased will not be accepted for return or warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in good and resalable condition. Shipping costs back and forth and import taxes (if there are any) are all borne by the buyer.
10. We provide six months to one year of quality warranty for most LED part products and two years for complete LED display products (Special terms are subject to the final Proforma Invoice.). If the items fail under normal use during this period, we will fix or replace them for free of charge in our factory. Buyers are responsible for back-and-forth shipping costs.
