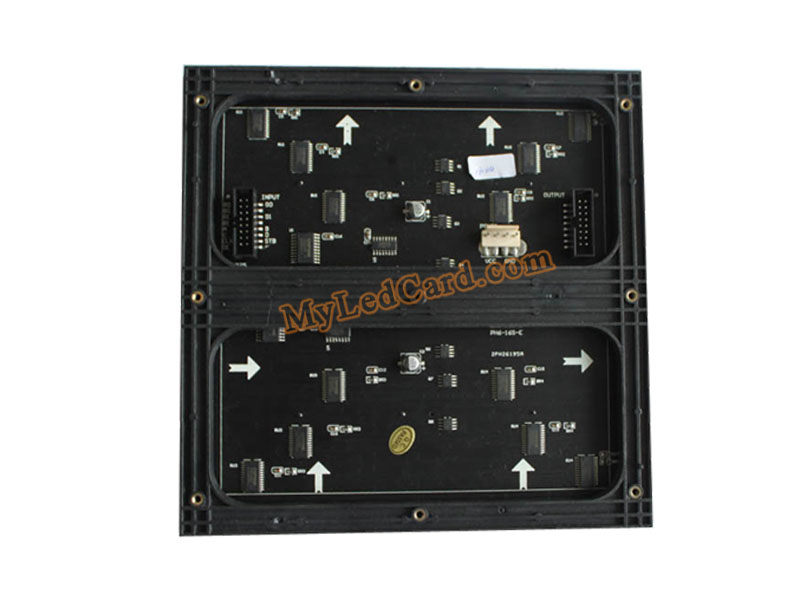

P6 (32 x 32 Pixels) Indoor SMD LED Display Screen Module Store P6 LED display screen unit module is currently one of the most cost effective solutions for indoor fixed and mobile applications. These multi-functional LED module boards are widely served everywhere such as shopping malls, casinos, stages, airports, retail centers, clubs, schools, metro stations, etc. The best price above includes the 320mm x 160mm LED module size, 16pin signal and 5V power cables. The production time is 12 days. Features: - High definition-27,778 pixels/sq.m - Top quality LED chips and driver IC - Low power consumption and long life span - Supports calibration technology on the LED lamps - Excellent heat dissipation on PCB board - Superb color uniformity and large viewing angles - IP43 protection rating to well withstand dust, moisture, static, etc - Brightness can be manually adjusted by software or auto-controlled by sensor card - Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc Specifications:
1. Pixel Pitch: 6mm
2. Pixel Density: 27,778 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, SMD3528
4. P6 LED screen Module Size (L*H): 192*192mm
5. P6 LED unit Module Resolution: 32*32 pixels
6. Panel Size (L*H*D): 960*960*130mm or as needed
7. Panel Resolution: 160*160 pixels
8. Brightness: ≥1300 nits/sq.m
9. Brightness Control: 100 grades by software or auto sensor card
10. Driving Method: 1/16 scan
11. Viewing Angle: 145°H /145°V
12. Viewing Distance: >3.6M
13 Refresh Rate: >400Hz
14. Grey Scale: ≥4,096 levels
15. Display Color: ≥16.7M
16. Power Consumption: max.:800W/sq.m, avg.:320W/sq.m
17. Input Voltage: 110~230V/AC (±10%)
18. Working Voltage: DC 5V
19. Input Power Frequency: 50/60Hz
20. Protection Rating: IP43 (front/rear)
21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
23. Life Span (50% brightness): ≥100,000 hours
24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS
1. We ship most of the items listed on our website worldwide using the fast shipping way with a tracking number via DHL, FedEx, or UPS Express, which is around 4~8+ days to arrive.
2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping lablel. Simply just providing us a shipping account will not be accepted. If you use a FedEx account, please also ask them for a control number or reference number.
3. We will process your order within 1~3 working days after receipt of payment. We will inform you of the delivery time when it happens to be Out of Stock for the products on your order.
4. We only ship to the confirmed address for your order so please do confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match. It is OK if you pay by Wire Transfer or Western Union.
5. Service transit time is provided by the shipping company and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. The buyer shall pay the customs charges on his side if they occur. Please inform us if you want to lower the product value on the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount as paid. And for all EU countries, Switzerland, Norway and Ireland, a VAT number must be provided for customs clearance.
7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.
8. Please check the items in front of the DHL/FedEx courier when they arrive. If the goods are damaged, please try to obtain local DHL’s documentary evidence for the breakage, and in the meantime, email us with photos of the packaging and products as soon as possible.
9. The products purchased will not be accepted for return or warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in good and resalable condition. Shipping costs back and forth and import taxes (if there are any) are all borne by the buyer.
10. We provide six months to one year of quality warranty for most LED part products and two years for complete LED display products (Special terms are subject to the final Proforma Invoice.). If the items fail under normal use during this period, we will fix or replace them for free of charge in our factory. Buyers are responsible for back-and-forth shipping costs.
