P4 Indoor Soft LED Screen Module
The best price includes the 256mm x 128mm flexible LED screen module, magnets, 16 pin signal cable and 5V power cable.
Features:

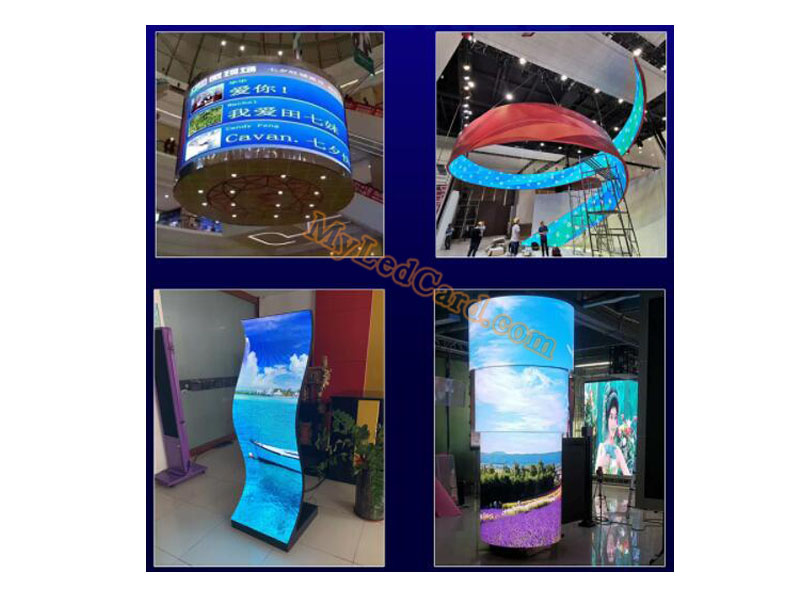

1. This soft module is a very practical, which can be displayed in a circle or arc shape, can be hoisted, or displayed vertically. It is a highly creative product;
2. Various effects such as rolling, bending and swinging can be designed according to customer's needs;
3. Using special materials and advanced technology, ultra-thin and ultra-light, the lightest weight of a single module is only 100G;
4. Adopting strong magnetic adsorption type installation, direct adsorption; simple installation and convenient maintenance;

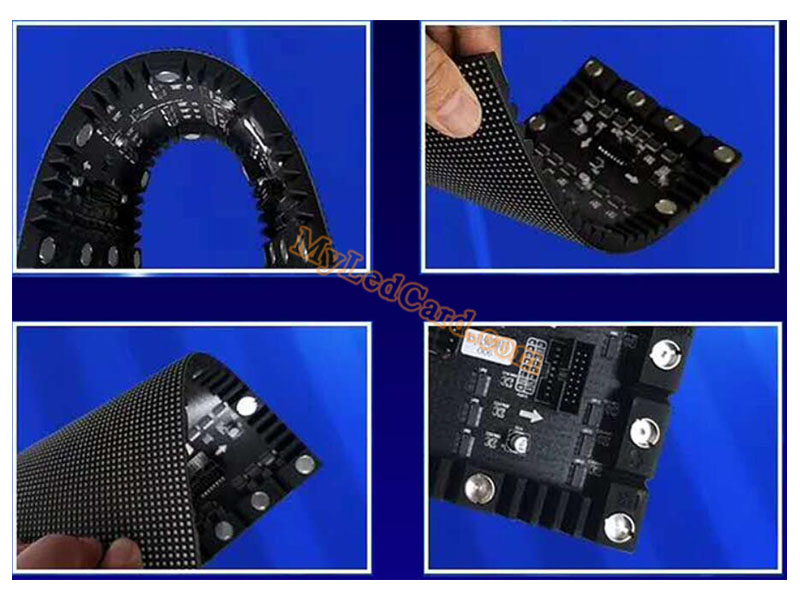

5. The PCB adopts a flexible soft board, and the mask and bottom shell are made of rubber;
6. Using distributed scanning and modular design technology, the reliability and stability are higher;
7. The gray scale can be 10-16 bits, and the refresh frequency can be 600-1920Hz, so that the LED display screen has no delay or smear phenomenon when presenting the image.
Specifications:
1. Pixel Pitch: 4mm
2. Pixel Density: 62,500 pixels/sq.m
3. Pixel Configuration & LED Type: 1R1G1B, SMD2121
4. LED Module Size (L*H): 256*128mm
5. LED Module Resolution:64*32 pixels
6. Panel Size (L*H*D): as needed
7. Panel Resolution: as needed
8. Brightness: ≥900 nits/sq.m
9. Brightness Control: 100 grades by software or auto sensor card
10. Driving Method: 1/16 scan
11. Viewing Angle: 160°H /140°V
12. Viewing Distance: >4M
13 Refresh Rate: ≥1,920Hz
14. Grey Scale: ≥16,384 grades
15. Display Color: ≥16.7M
16. Power Consumption: max.:800W/sq.m, avg.:320W/sq.m
17. Input Voltage: 110~230V/AC (±10%)
18. Working Voltage: DC 5V
19. Input Power Frequency: 50/60Hz
20. Protection Rating: IP43 (front/rear)
21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%
23. Life Span (50% brightness): ≥100,000 hours
24. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS
23. Life Span: ≥100,000 hours
24. Available Control System: Linsn/NovaStar//Colorlight/Mooncell/Onbon/Xixun/Lumen,etc
25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m
26. Operating System: Windows Series
27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc
28. Compliant Standard: CE/RoHS
