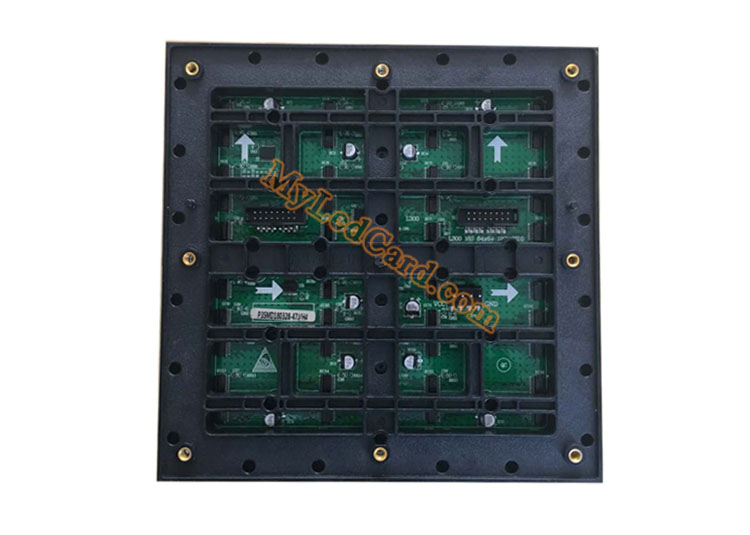

P3 Outdoor SMD Full Color LED Screen Module

The best price includes the 192mm x 192mm SMD full color LED screen module, waterproof rubber ring, 16pin signal cable and 5V power cable.

Specifications:

1. Pixel Pitch: 3mm

2. Pixel Density: 111,111 pixels/sq.m

3. Pixel Configuration & LED Type: 1R1G1B, SMD1919 or SMD1921

4. LED Screen Module Size(L*H): 192*192mm or 320x160mm

5. LED Screen Module Resolution: 64*64 pixels

6. LED Cabinet Size (L*H*D): 768*768*110mm or as needed

7. LED Cabinet Resolution: 256*256 pixels

8. Brightness: ≥6,000 nits/sq.m

9. Brightness Control: 100 grades by software or auto sensor card

10. Driving Method: 1/16 scan

11. Viewing Angle: 160°H /140°V

12. Viewing Distance: >3M

13 Refresh Rate: >1,920Hz

14. Grey Scale: ≥16,384 levels

15. Display Color: ≥16.7M

16. Power Consumption: max.: 890W/sq.m, avg.: 356W/sq.m

17. Input Voltage: 110V or 230V/AC (±10%)

18. Working Voltage: DC 5V

19. Input Power Frequency: 50/60Hz

20. Protection Rating: front-IP65/rear-IP54 (with cabinet)

21. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

22. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

23. Life Span (50% brightness): ≥100,000 hours

24. Available Control System: Linsn, NovaStar, Colorlight, Mooncell, Onbon, Xixun, Lumen, etc

25. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

26. Operating System: Windows Series

27. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

28. Compliant Standard: CE/RoHS
