P3 SMD Indoor Full Color LED Display Screen

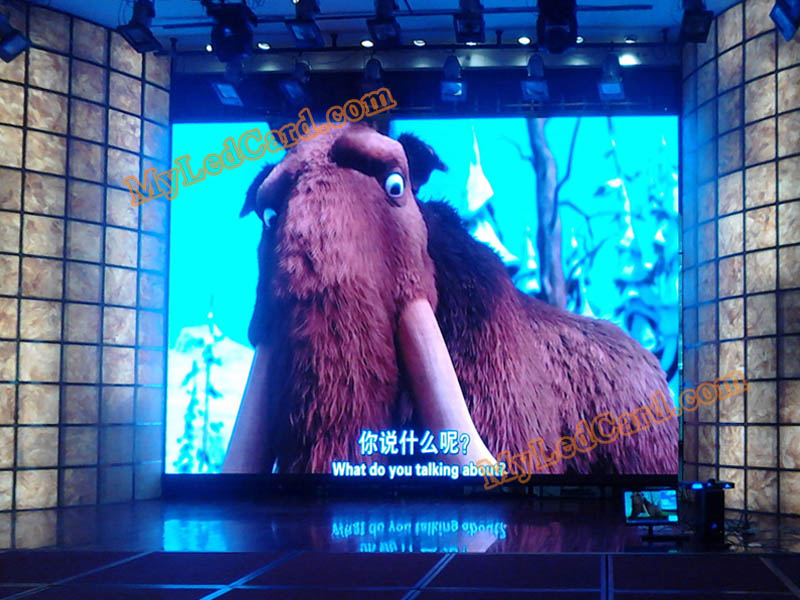

Equipped with 111111 pixels per sq.m and dark black SMD 2121 LEDs, P3 SMD Indoor Full Color LED Display Screen can generate extremely HD effects with the most pristine, excellent contrast ratio for its display colors at super close viewing distances. It is an high end digital display solution for indoor installations at trade shows, broadcast studios, museums, corporate venues, wedding events,etc.

The best price above is based on a panel size of 576 x 575mm, EXW term. It is included with a receiving card and necessary cables. The production time with the aging test is 16 working days. The panel size and color can be customized.

Features:

- Ultra high definition-111,111 pixels/sq.m;

- High quality LED chips and driver IC;

- Rich colors and excellent contrast ratio;

- Superb color uniformity and large viewing angles;

- Low power consumption and long life span;

- Supports calibration technology on the LED lamps;

- Excellent heat dissipation on PCB board;

- Die casting aluminum cabinet, seamless connection;

- Lightweight, easy setup and tear down;

- Ideally suited for fixed and rental applications;

- IP43 protection rating to well withstand dust, moisture, static, et;c

- Brightness can be manually adjusted by software or auto-controlled by a sensor card;

- Control systems supported: Linsn, Dbstar, Novastar, Zdec, Onbon, Xixun, Lumen, etc.

Specifications:

1. Pixel Pitch: 3mm

2. Pixel Density: 111,111 pixels/sq.m

3. Pixel Configuration & LED Type: 1R1G1B, SMD2121

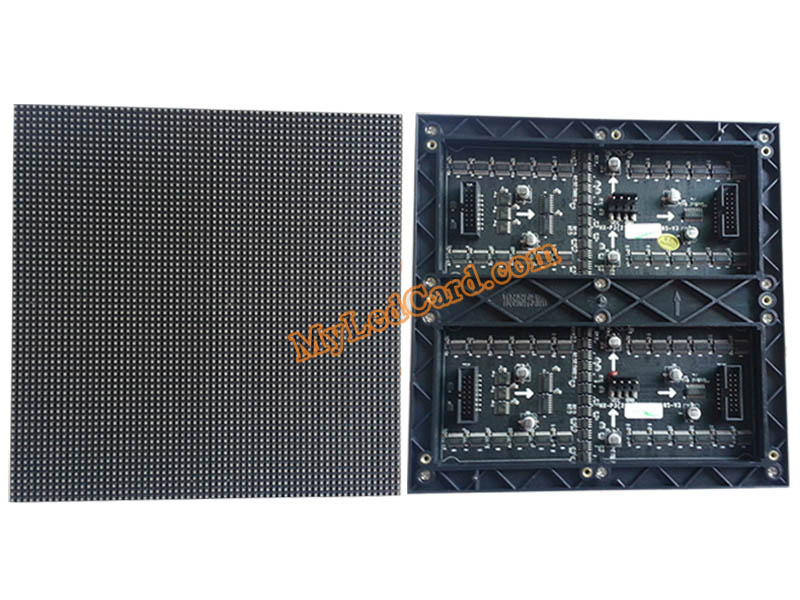

4. LED Screen Module Size (L*H): 192*192mm

5. LED Screen Module Resolution: 64*64 pixels

6 .LED Screen Panel Size (L*H*D): 576*576*80mm

7. LED Screen Panel Resolution: 192*192 pixels

8. LED Screen Panel Meterial: Die-casting aluminum

9. LED Screen Panel Weight: 11KG

10. Brightness: ≥1,200 nits/sq.m

11. Brightness Control: 100 grades by software or auto sensor card

12. Driving Method: 1/16 scan

13. Viewing Angle: 140°H /140°V

14. Viewing Distance: >3M

15 Refresh Rate: ≥1,200Hz

16. Grey Scale: ≥4,096 levels

17. Display Color: ≥16.7M

18. Power Consumption: max.: 1,100W/sq.m, avg.:440W/sq.m

19. Input Voltage: 110V or 230V/AC (±10%)

20. Working Voltage: DC 5V

21. Input Power Frequency: 50/60Hz

22. Protection Rating: IP43 (front/rear)

23. Operating Environment Temperature: -20°C~+50°C, Humidity: 10%~95%

24. Storage Environment Temperature:-40-50°C, Humidity: 10-90%

25. Life Span (50% brightness): ≥100,000 hours

26. Available Control System: Linsn/NovaStar/Dbstar/Colorlight/Mooncell/Onbon/Xixun/Lumen,etc

27. Transmission Distance: multi-mode fiber <500m, single mode fiber <30Km, internet cable <100m

28. Operating System: Windows Series

29. Video Input (with video processor): VGA,YC,DVI,DHMI,SDI,RGB,CVBS,GD-SDI,etc

30. Compliant Standard: CE/RoHS

1. We ship most of the items listed on our website worldwide using the fast shipping way with a tracking number via DHL, FedEx, or UPS Express, which is around 4~8+ days to arrive.

2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping lablel. Simply just providing us a shipping account will not be accepted. If you use a FedEx account, please also ask them for a control number or reference number.

3. We will process your order within 1~3 working days after receipt of payment. We will inform you of the delivery time when it happens to be Out of Stock for the products on your order.

4. We only ship to the confirmed address for your order so please do confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match. It is OK if you pay by Wire Transfer or Western Union.

5. Service transit time is provided by the shipping company and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. The buyer shall pay the customs charges on his side if they occur. Please inform us if you want to lower the product value on the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount as paid. And for all EU countries, Switzerland, Norway and Ireland, a VAT number must be provided for customs clearance.

7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.

8. Please check the items in front of the DHL/FedEx courier when they arrive. If the goods are damaged, please try to obtain local DHL’s documentary evidence for the breakage, and in the meantime, email us with photos of the packaging and products as soon as possible.

9. The products purchased will not be accepted for return or warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in good and resalable condition. Shipping costs back and forth and import taxes (if there are any) are all borne by the buyer.

10. We provide six months to one year of quality warranty for most LED part products and two years for complete LED display products (Special terms are subject to the final Proforma Invoice.). If the items fail under normal use during this period, we will fix or replace them for free of charge in our factory. Buyers are responsible for back-and-forth shipping costs.
