Novastar VX400S-N LED Display Controller
NovaStar VX400S-N is an all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports. A VX400s-N unit can drive up to 2.3 million pixels, with the maximum output width and height both up to 3840 pixels.
The VX400s-N is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling and chroma calibration and more, to present you with an excellent image display experience.
Specifications:

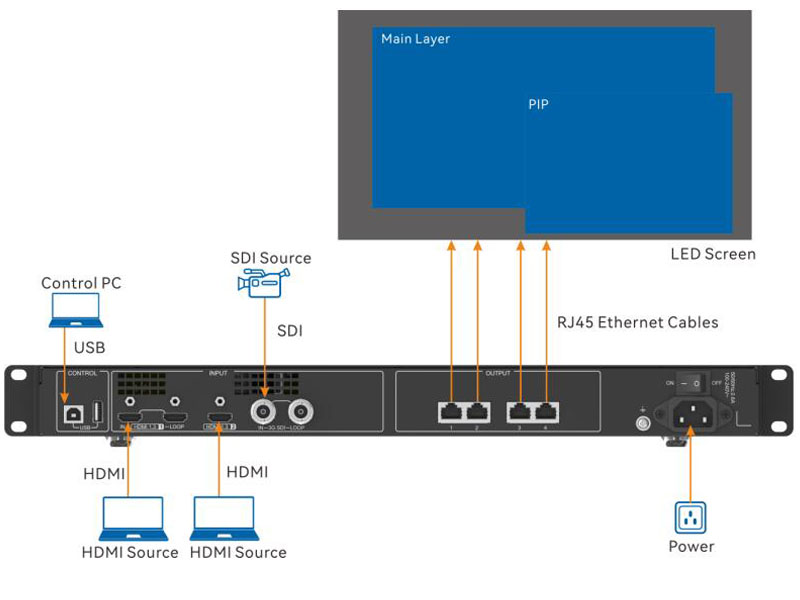

Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x 3G-SDI (IN & LOOP)
Output connectors
− 4x Gigabit Ethernet ports
A single device unit drives up to 2.3 million
pixels, with a maximum width of 3840 p
Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x 3G-SDI (IN & LOOP)
Output connectors
− 4x Gigabit Ethernet ports
A single device unit drives up to 2.3 million
pixels, with a maximum width of 3840 pixels
and a maximum height of 3840 pixels.
Audio input and output
− Audio input accompanied with an HDMI input
source
− Audio output via a multifunction card
− Output volume adjustment supported
2x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source can be used as the sync
source to ensure the output images of all
cascaded units in sync.
Powerful video processing
− Based on SuperView III image quality
processing technologies to provide stepless
output scaling
− One-click full screen display
− Free input cropping
Easy preset saving and loading
Up to 10 user-defined presets
Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
Up to 4 units cascaded for image mosaic
Output image quality management
Brightness, saturation, contrast and hue
adjustment
Pixel level brightness and chroma calibration
Working with NovaLCT and NovaStar calibration
software to support brightness and chroma
calibration on each LED, effectively removing
color discrepancies and greatly improving LED
display brightness and chroma consistency,
allowing for better image quality.

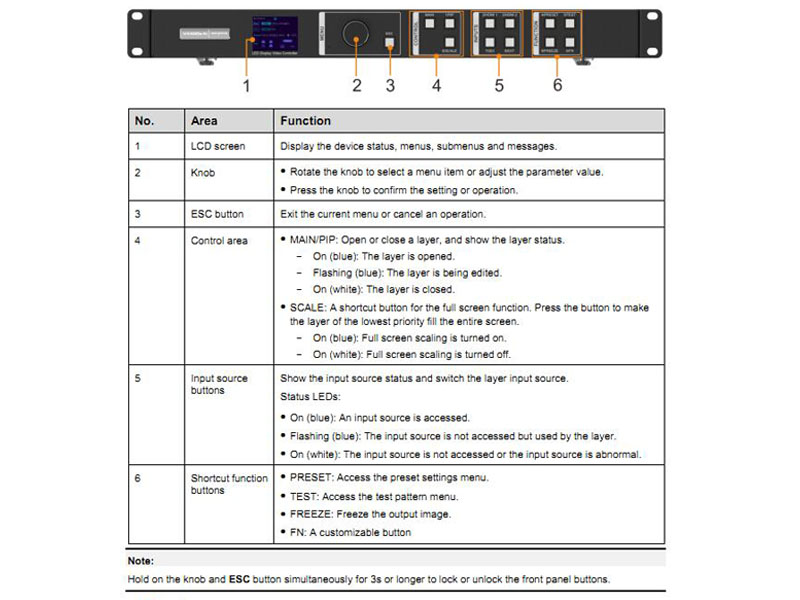

Multiple operation modes
Control your device as you wish via NovaLCT or
device front panel knob and buttons
