Novastar VX16S All-In-One LED Wall Video Controller

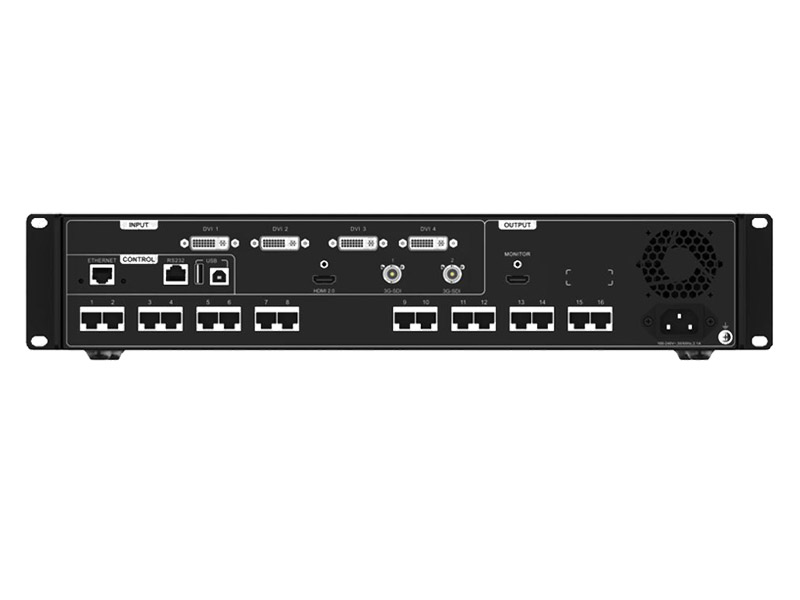

The VX16s is NovaStar's new all-in-one LED display wall video controller that integrates video processing, video control, and LED screen configuration into one unit, featuring ultra HD 4K×2K@60Hz image processing and sending capabilities, and up to 10,400,000 pixels.

Novastar VX16S Features:

Industry-standard input connectors

− 2x 3G-SDI 1920×1080@60Hz

− 1x HDMI 2.0 3840×2160@60Hz

− 4x SL-DVI 1920×1080@60Hz

– 16 Ethernet output ports load up to 10,400,000 pixels.

– 3 independent layers

− 1x 4K×2K main layer

2x 2K×1K PIPs (PIP 1 and PIP 2)

− Adjustable layer priorities

– DVI mosaic

Up to 4 DVI inputs can form an independent

input source, which is DVI Mosaic.

– Decimal frame rate supported

Supported frame rates: 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz, and 119.88 Hz.

– 3D

Supports a 3D display effect on the LED screen. The device output capacity will be halved after the 3D function is enabled.

Personalized image scaling

Three scaling options are pixel-to-pixel, full screen, and custom scaling.

– Image mosaic

Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

– Easy device operation and control through VCan

– Up to 10 presets can be saved for future use.

– EDID management

Custom EDID and standard EDID supported

– Device backup design

In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.

Certifications: CE, FCC, IC, RoHS

Size: 485*95*373MM

Weight: 10KG
