Novastar TCC70 TCC70A TCC70S LED Multimedia Player

Novastar TCC70 LED display multimedia player series includes TCC70, TCC70A, and TCC70S. This series integrates sending and receiving capabilities. Content publishing and screen control can be operated via various user terminal devices such as PC, mobile phone, and tablet. This series can access the cloud publishing and monitoring platforms to easily enable cross-region clustered management of screens.

The TCC70 series comes with eight standard HUB75E connectors for communication and supports up to 16 groups of parallel RGB data. On-site setup, operation, and maintenance are all taken into account when the hardware and software of the TCC70 were designed, allowing for an easier setup, more stable operation, and more efficient maintenance.

The TCC70 series saves space, simplifies cabling, and is suitable for applications requiring small loading capacities such as vehicle-mounted displays, small traffic displays, displays in communities, and lamp-post displays.

TCC70 Features:
 Loading capacity of a single card: up to 512×384 pixels
− Maximum width: 1280 (1280×128)
− Maximum Height: 512 (384×512)
 1x Stereo audio output
 1x USB 2.0 port
Supports USB playback.
 1x RS485 connector
Connects to a sensor such as a light sensor, or connects to a module to implement corresponding functions.

 Powerful processing capability
− 4 core 1.2 GHz processor
− Hardware decoding of 1080p videos
− 1 GB of RAM
− 8 GB of internal storage (4 GB available)

 All-round control scheme
− Solution publishing and screen control via user terminal devices such as PC, mobile phone, and tablet
− Clustered remote solution publishing and screen control
− Clustered remote screen status monitoring

 Built-in Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi AP of the TCC70. The default SSID is
"AP+Last 8 digits of SN" and the default password is "12345678".
 Supports 4G networks (CAT1 by default) Currently, 4G networks can be accessed in China and India only.
 Supports GPS positioning and GPS time synchronization
 Supports relays (maximum DC 30 V 3 A)

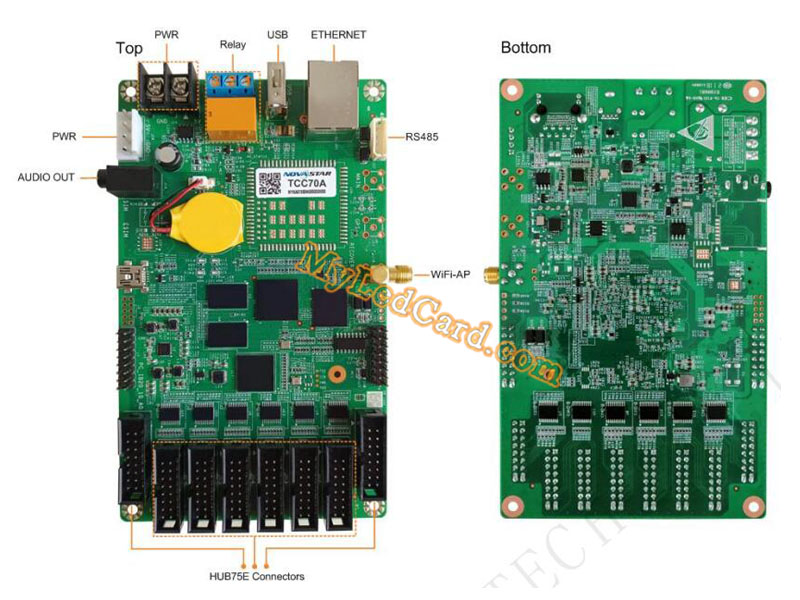

TCC70A Features:
 Loading capacity of a single card: up to 512×384 pixels
− Maximum width: 1280 (1280×128)
− Maximum Height: 512 (384×512)
 1x Stereo audio output
 1x USB 2.0 port
Supports USB playback
 1x RS485 connector
Connects to a sensor such as a light sensor, or connects to a module to implement corresponding functions.

 Powerful processing capability
− 4 core 1.2 GHz processor
− Hardware decoding of 1080p videos
− 1 GB of RAM
− 8 GB of internal storage (4 GB available)
 All-round control scheme
− Solution publishing and screen control via user terminal devices such as PC, mobile phone and tablet
− Clustered remote solution publishing and screen control
− Clustered remote screen status monitoring

 Built-in Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi AP of the TCC70A. The default SSID is "AP+Last 8 digits of SN" and the default password is "12345678".
Supports relays (maximum DC 30 V 3 A)

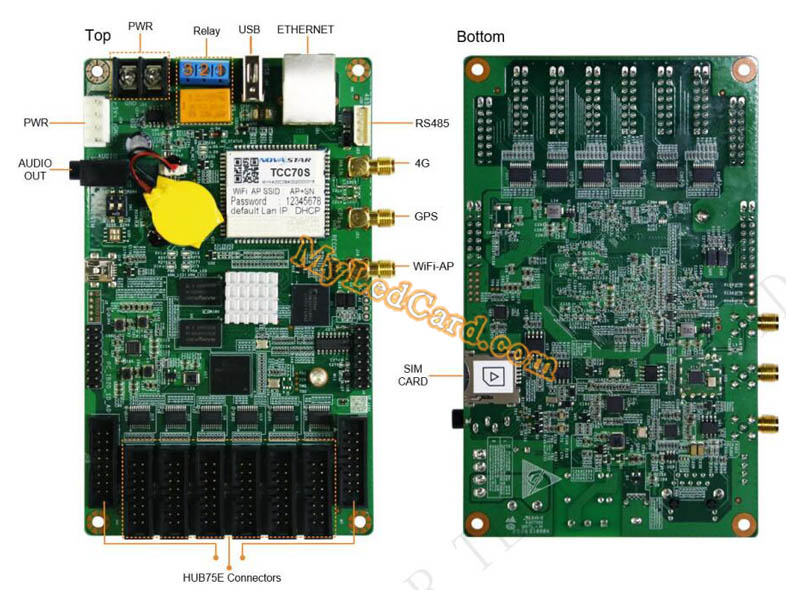

TCC70S Features:
 Loading capacity of a single card: up to 512×384 pixels
− Maximum width: 1280 (1280×128)
− Maximum Height: 512 (384×512)
 1x Stereo audio output
 1x USB 2.0 port
Supports USB playback.
 1x RS485 connector
Connects to a sensor such as a light sensor, or connects to a module to implement corresponding functions.

 Powerful processing capability
− 4 core 1.2 GHz processor
− Hardware decoding of 1080p videos
− 1 GB of RAM
− 8 GB of internal storage (4 GB available)

 Built-in Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi AP of the TCC70S. The default SSID is "AP+Last 8 digits of SN" and the default password is "12345678".
Supports 4G networks (CAT4 by default)
Currently, 4G networks can be accessed in China only.
Supports GPS positioning and GPS time synchronization
Supports relays (maximum DC 30 V 3 A)
