Novastar A9s LED Display Mini Receiving Card

Resolution: 512×512

RGB data output: 32

MOM Interface: Support

Pixel level color and brightness calibration: Support

Receiving Card Backup Support: Support

RCFG Backup and Read: Support

Auto Calibration: Support

Cabinet Mapping: Support

18bit+: Support

ClearView: Support

Free Rotation: Support

Low latency: Support

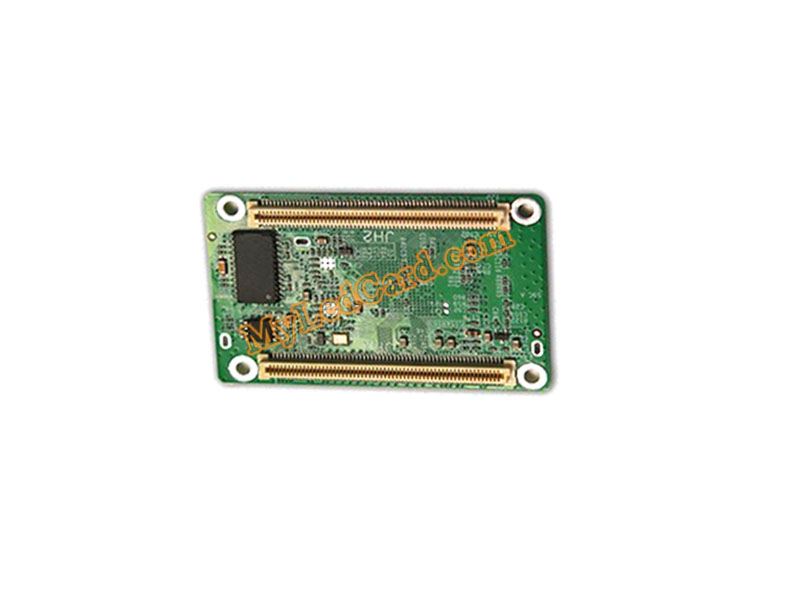

A9s is a high-end receiving card developed by NovaStar. It has a small size and

features a large loading capacity, with a single card loading up to 512×512 (PWM IC)

pixels.

The A9s supports pixel-level brightness and chroma calibration by working with

NovaLCT and NovaCLB to perform calibration on each pixel. It can effectively

remove color discrepancies and greatly improve LED display image consistency. In

addition, it also supports image rotation in 90° increments, creating a richer image

and offering users the ultimate visual experience.

On-site setup, operation, and maintenance were all taken into account when

designing the hardware and software of the A9s, allowing for an easier setup, more

stable operation, and more efficient maintenance.

Advanced hardware design:

 The small hardware footprint is suitable to applications with limited cabinet space

and small pixel pitch.

 Uses the dust-resistant high-density connector to limit effects of dust and vibration,

resulting in high stability and reliability.

 Integrated network transformer features a simple design and improved magnetic

compatibility, helping user’s products to successfully pass the EMC certification.

Useful software design:

 Supports LVDS transmission (supported by dedicated firmware program).

 Supports smart module (supported by dedicated firmware program).

 Supports quick seam correction.

 Supports 3D function.

 Supports auto module calibration.

 Supports Mapping function.

 Supports the setting of the pre-stored image on the receiving card.

 Supports management of module's Flash.

 Supports voltage and temperature monitoring of card without use of peripherals.

 Supports monitoring of Ethernet cable communication status (supported by

dedicated firmware program).

 Supports 5-pin LCD module.

 Supports image rotation in 90°increments.
