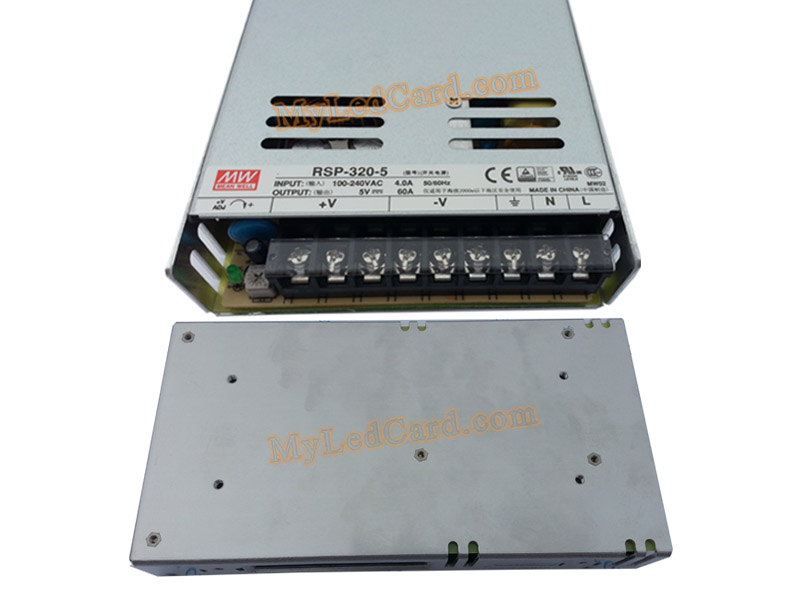

Meanwell RSP-320-5 PFC LED Display Power Supply 100-240VAC

Meanwell RSP-320-5 is the replaced model of SP-320-5 which has been out of production. The RSP-320-2.5, RSP-320-3.3, and RSP-320-4 are also available.

Features:

5V 60A, 300W

Universal AC input / Full range

Built-in active PFC function, PF>0.95

High efficiency up to 90%

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC Fan with fan speed control function

1U low profile 30mm

Optional conformal coating models (RSP-320- CC)

LED indicator for power on

UL CE TUV CCC EMC CB passed

Size:215×115×30mm

AC input voltage range---------88-132VAC/ 176-264VAC

Input frequency---------------------------------47-63Hz

AC inrush current--------------------------------Cold start,40A/230VAC

DC adjustment range-----------------------------±10% rated output voltage

Line regulation(full load)------------------------≤0.5%

Output over load protection-------110%-150% hiccup mode,auto-recovery

Rise,hold up time--------------------50mS,20mS at full load(typical)

Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min

Working temperature----- -10~+40℃@100%,+60℃@60% load

Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)

Safety standards------Design refer to GB4943,UL60950-1,EN60950-1

EMC standards------- Design refer to GB9254,EN55022 class A

Cooling method---------------------Forced air cooing by built-in DC fan
