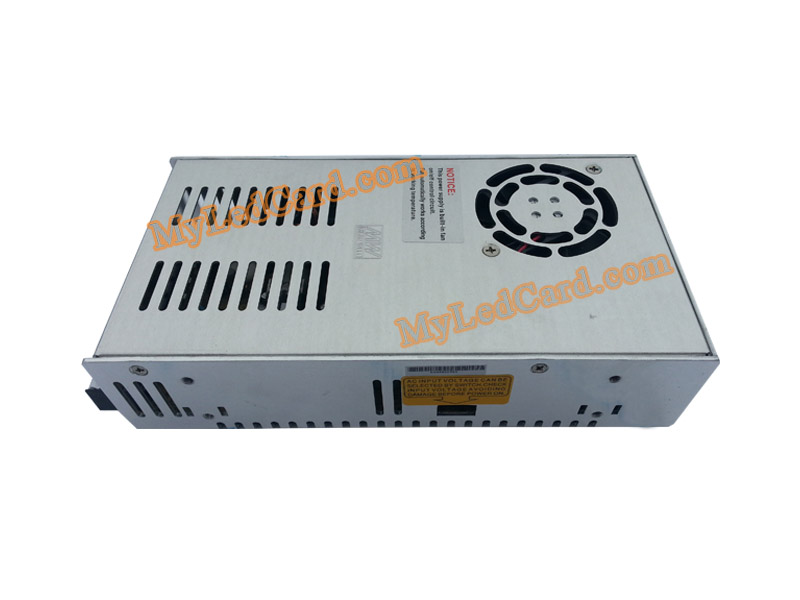

MeanWell 12V/350W 29A Switching Power Supply (NES-350-12)

NES-350-12 Features:

1:100% full load burn-in test
2:Protections: Short circuit / Overload / Over voltage / Over temperature
3:AC input range selectable by swith
4:Forced air Cooling by built-in DC fan
5:Withstand 300VAC Surge input for 5 seconds
6:Built-in constant current limiting circuit
7:Built-in cooling Fan ON-OFF control
8:LED indicator for power on
9:Low cost / High reliability
10:Fixed switching frequency at 100KHz

Product Specifications:

Model		NES-350-12
Input	Voltage Range (Note 4)	90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	AC CURRENT (Typ.)	7A/115VAC 4A/230VAC
	LEAKAGE CURRENT	<3.5mA / 240VAC
	INRUSH CURRENT (Typ.)	40A/115VAC 60A/230VAC
	EFFICIENCY (Typ.)	83%
Output	RATED CURRENT	29A
	DC VOLTAGE	12V
	RATED POWER	350W
	CURRENT RANGE	0-29A
	VOLTAGED ADJ. RANGE	10~ 13.5V
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE TOLERANCE Note.3	±1.5%
	LOAD REGULATION	±1.0%
	LINE REGULATION	±0.5%
	HOLD UP TIME	20ms/230VAC 16ms/115VAC at full load
	SETUP, RISE TIME	1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load
Protection	OVER VOLTAGE	13.8 ~ 16.2V Protection type :Shut down O/P voltage, re-power on to recover
	OVER LOAD	105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER TEMPERATURE	90 5 (3.3~7.5V); 85 5 (12~15V); 80 5 (24V);75 5 (27~48V) (TSW1) Detect on case Protection type : Shut down O/P voltage, recovers automatically after temperature goes down
Safety	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	SAFETY STANDARDS	UL60950-1 approved
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Environment	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	WORKING TEMP	-20 ~ +60 (Refer to output load derating curve)
	TEMP. COEFFICIENT	± 0.03%/
