Lumen C-Power 5200 LED Display Controller Card

Full color Gray Scale LED Display Screen TCP/IP/Etherent/RJ45 C-Power5200 Controller Card with Free Hub Board

Lumen C-Power5200 control system is for advanced full-color gray-scale graph led screen, which is released by Shenzhen Lumen Electronics Co. Ltd. With more functions,higer performance and larger memory

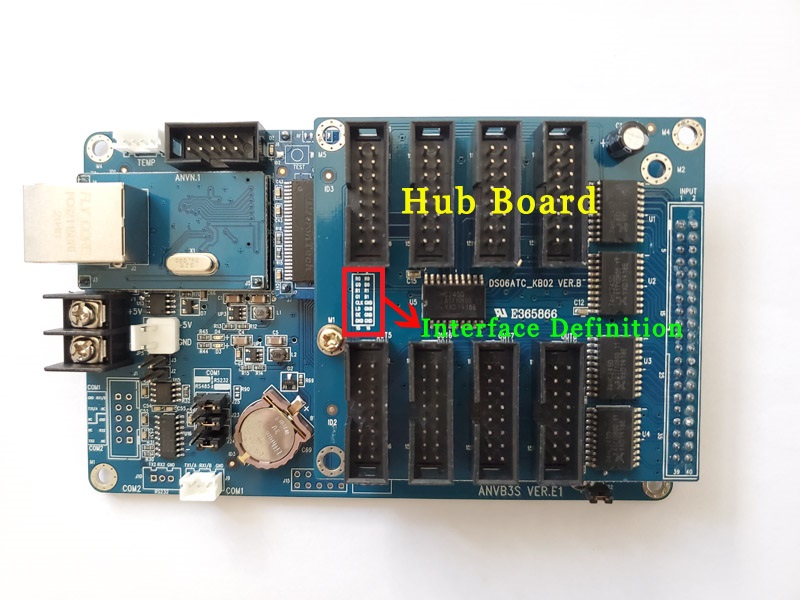

Please send us a close up picture of your HUB board showing the interface definition when you order this C-Power 5200 control card. We will not process your order if we don't know how your HUB board looks like.

Product Specifications:

Memory	Font library space: 128M Program size: 128M Totol size: 256MByte(2GMbit)
Control size (full, mono/RG color)	65,536 pixels, 256-grade gray scales Self adjustment the size, such as 76880 / 256256 / 512128 /102464
Separate window mode	Supports playing the content in different formats for each playing window. Supports the segmentation of up to ten playing windows for each program.
Program	All programs are transmitted by compression package, and then decompressed on control card. With multi-program mode. Stores up to 512 programs to the Led screen. Supports animation(swf,gif), text, picture, temperature, clock, etc. Transparent text and clock program can be edit to cover photo or video Text program edit in any language, any font and any size, free adjust With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance. More than 60 effects for text and picture, such as: mosaic,snow fall, fan open, slide zebra, etc. Supports programs played at the appointed period (for example: hour, minute, week ) Supports AVI video program NEW!
Font library	128MB font library space The card can be stored different fond library and can be changed free, such as English,Korean,Japanese,simplified Chinese,traditional Chinese and etc.
Affiliated features	Supports sensors installed externally (32-grade brightness) Supports environmental data programs like temperature, etc Supports real-time clock (RTC) management and setting, support digital and analogue clock
Standard communication mode	USB flash disk version: USB interface RS232/RS485: maximum baud rate: 115200 network version: TCP/IP network interface, encrypted message transmission
External communication components	Supports various wireless communication modes: GPRS/CDMA, ZigBee, RF...
InDa remote & keyboard	Program list edit and display control by infrared controller or keyboard
Others	Provides demonstration program and source code for customized development Provides customized development interface and its manual. Besides, provides “Wireless information issue” version.
Standard software	LedCenter V3.53 or above LedCenterV3.54 or above (to support video)
