Hangte LPU400S5Y6 Series LED Power Supply

Hangte Siqi LPU400S Y6 LED display power supply series includes LPU400S4.2Y6, LPU400S4.5Y6, LPU400S5Y6, LPH400S4.2Y6, LPH400S4.5Y6, and LPH400S5Y6.

Features:

Traditional 400W rental power supply, ul/ce certification model is complete, and the quality is stable;

Wide voltage range, high efficiency, low heating and excellent performance;

The temperature range of working environment is wide, - 40 ~ + 70 ℃;

It is designed according to American Standard ul60950, with safety guaranteed;

Built in complete over-current protection, short-circuit protection function, can prevent wire short-circuit fire;

Design and manufacture of new high quality components;

100% full load high temperature aging, low failure rate, high reliability;

With active power factor correction circuit, no interference power grid, energy saving.

Specifications:

Output Voltage Selectable: 5V, 4.5V, 4.2V

Overload protection: Yes, after the overload fault is eliminated, it will automatically resume working, and the output terminal will not be damaged or heated due to long-term short circuit

Output short circuit protection: Yes, the output short circuit fault is automatically restored after elimination, and the output short circuit will not be damaged or heated for a long time

Over voltage protection: Yes, it can prevent the power supply from being damaged or burned due to high voltage

Withstand voltage: IP-OP:3000Vac; IP-PE:1500Vac;OP-PE:500vdc

Working temperature: -40℃-70 ℃degrees (20-70℃degrees for some models)

Start-up Time: <3 sec

Safety standards: GB4943/EN60950

EMCstandards: IEC61000-4

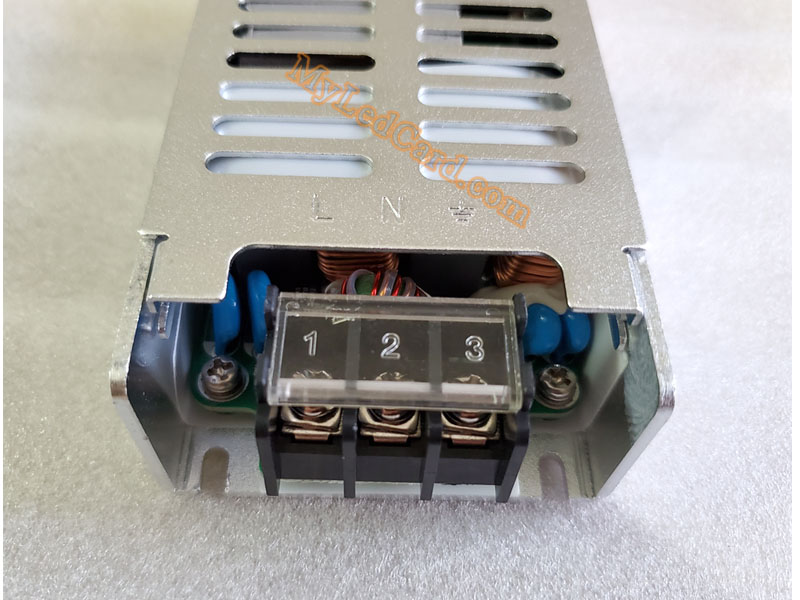

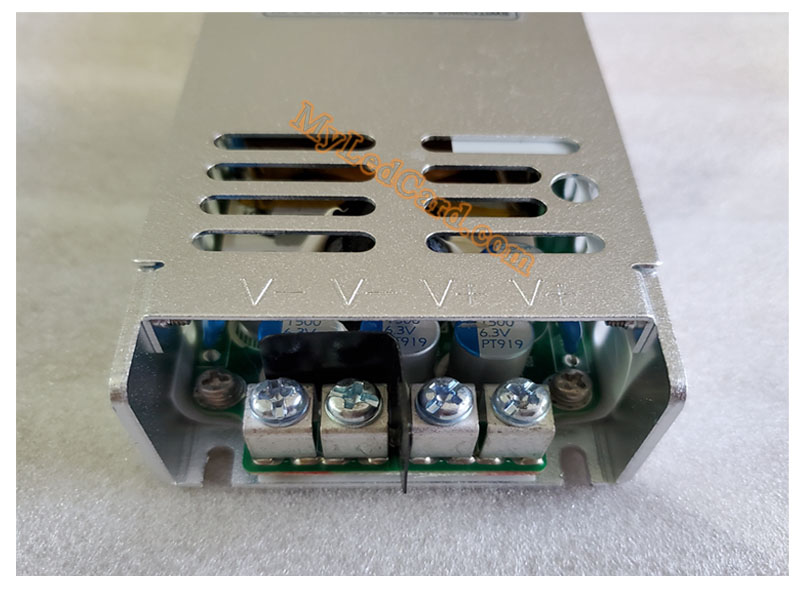

Connection: 9.5mm screw terminial

Dimensions (L*W*H): 235±1 × 60±1mm × 30±1mm

Model	Input	Output	Current	Effi.	Tol.	R&N	Temp	PFC	Cert
LPU400S4.2Y6	AC100-240V	4.2V	80A	89%	±3%	<200mV	-40-70℃	√	CE/UL
LPH400S4.2Y6	AC200-240V	4.2V	80A	87%	±3%	<200mV	-40-70℃	Χ	/
LPU400S4.5Y6	AC100-240V	4.5V	80A	91%	±3%	<200mV	-40-70℃	√	CE/UL
LPH400S4.5Y6	AC200-240V	4.5V	80A	89%	±3%	<200mV	-40-70℃	Χ	/
LPU400S5Y6	AC100-240V	5.0V	80A	92%	±3%	<200mV	-40-70℃	√	CE/UL
LPH400S5Y6	AC200-240V	5.0V	80A	90%	±3%	<200mV	-40-70℃	Χ	/
